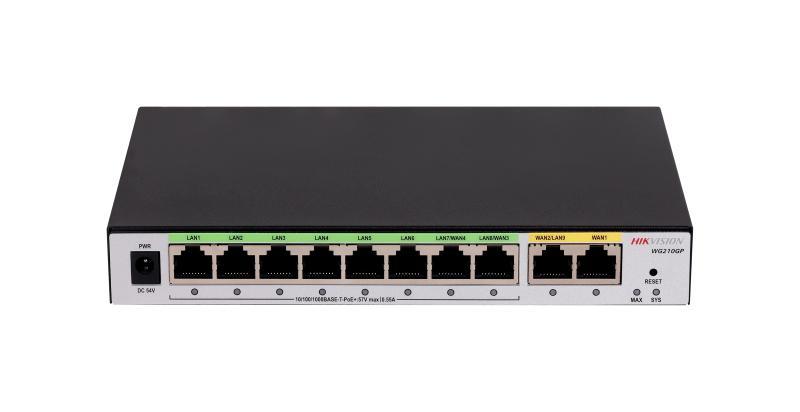

Routeur All in One 10 Port PoE — Hikvision DS-3WG210GP-SI. Désignation constructeur : All in One 10 Port PoE Router. Caractéristiques relevées sur la fiche officielle : alimentation : 54 VDC, 1.48A ; température de fonctionnement : 0 °C to 40 °C (32 °F to 104 °F). Matériel constructeur neuf, garanti. Prix sur demande : nos conseillers vous répondent sur WhatsApp.
| Référence | DS-3WG210GP-SI |
| Marque | HIKVISION |
| Catégorie | Réseaux |
| Disponibilité | Sur commande |
| Shell | Metal |
| Packing List | AC Router × 1,Regulatory Compliance and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Power Supply Adaptor × 1,Power Cord × 1 |
Prévoir les fiches RJ45 pour sertir le câblage aux deux extrémités.
Protège les équipements réseau de la poussière et des manipulations, et range le câblage.
| Storage Humidity | 5% to 95% (no condensation) |
| Working Humidity | 5% to 95% (no condensation) |
| Power Consumption | Max. 80 W |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Product Dimensions (W × H × D) | 190 mm × 125 mm × 27 mm (7.48'' × 4.92'' × 1.06'') |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Radio | EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17 |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
| Bandwidth | 1 Gbps |
| CAPWAP Tunnel | Auto AP serial number entry,AC discovery (DHCP option43, DNS),Assign basic AP network parameter through AC (Supported: Static IP, VLAN, Connected AC address) |
| Access Control | Open System,Shared-Key,WPA,WEP-64/128, dynamic WEP,WPA2,WPA3 |
| Networking Access | Support fixed IP address, DHCP automatic address acquisition, PPPoE dial-up and other methods |
| Number of WAN Access | Up to 4 WAN Load balancing |
| Multi-WAN Load Balancing | Load balancing based on the destination address of the carrier,Load balancing based on link bandwidth,Load balancing based on user (IP address),Policy-based routing (PBR) for forwarding over specified lines,End-to-end link detection and backup functions |
| Maximum Number of Clients | 200 |
| Maximum Number of Managed APs | 200 |
| RAM | 256 MB |
| Flash | 128 MB |
| LAN Port | 8 Gigabit PoE LAN Ports with 2 LAN/WAN Switchable |
| PoE Port | PoE Ports: Ports 1to 8 , 802.3af/at |
| WAN Port | 2 Gigabit WAN Ports with 1 WAN/LAN Switchable |
| Power Supply | 54 VDC, 1.48A |
| Reset Button | Hardware Resetting Button |
| Forwarding Capacity | 20 Gbps |
| NAT | 40000 Max. Access |
| VPN | IPSec VPN:,Support 100 IPSec connections,Support AH and ESP protocols (ESP supports 3DES and AES encryption algorithms),Support IKE to automatically establish SA,Support MD5 and SHA-1 authentication algorithms,Support IKE main mode and aggressive mode,Support NAT-T traversal,Support IPSec connection configuration by domain name (DDNS) |
| Security | Firewall Policy,DDoS Defending,IP/MAC/URL Filtering,ARP Defending,Support DDoS attack prevention and statistics,Support Prevent WAN port ping,Support Prevent TCP syn scan,Support Prevent TCP Stealth FIN scan,Support Prevent TCP Xmas Tree scanning,Support Prevent TCP Null scan,Support Prevents UDP scanning,Support Prevent Land attacks,Support Protects against Smurf attacks,Support Protects against WinNuke attacks,Support Protect against Ping of Death attacks,Support Protect against SYN Flood attacks,Support Protect against UDP Flood attacks,Support Protect against ICMP Flood,Support Protect against IP Spoofing,Support Prevent Fragmented Packet Attack,Support Protect against TearDrop attack,Support Protect against Fraggle attack |
| AP Management | AP Discovery,AP Management,Support Multi-SSID Configuration,SSID Hiding,Channel Setting |
| Hik-Partner Pro | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device. |
| Network Feature | IPv4,DDNS,UPnP,DHCP Server,NTP Client,Multicast,PIM,MLD Snooping,IGMP Snooping,Multicast group |
| User Management | User Authentication,Support user blacklist and whitelist,Controls the number of access users:,Based on APs,Based on SSIDs,Logs out users in any of the following ways:,Using RADIUS DM messages,Using commands,Support various methods to view information:,Displays the number of online users in an ESS, AP, or radio.,Collects packet statistics on air interface based on user. |
| Version Upgrade | Support upgrade by Web,Support upgrade by HPP |
| Layer 2 Protocol | ARP,VLAN,ARP (gratuitous ARP) |
| System Maintenance | Support device management via web.,Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.,Support remote management via Hik-Partner Pro. ,Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.,Support port mirroring for fault locating. |
Compatible avec les principales gammes HIKVISION et les standards du marché. Pour vérifier la compatibilité avec votre installation, contactez nos experts — réponse en moins de 2 minutes sur WhatsApp.
