Cette caméra analogique HD nécessite un DVR/XVR compatible pour enregistrer.
Produit officiel, garanti et facturé.
S'intègre à votre installation existante.
Pose facile ou par nos techniciens certifiés.
Conseil technique 6j/7 sur WhatsApp.

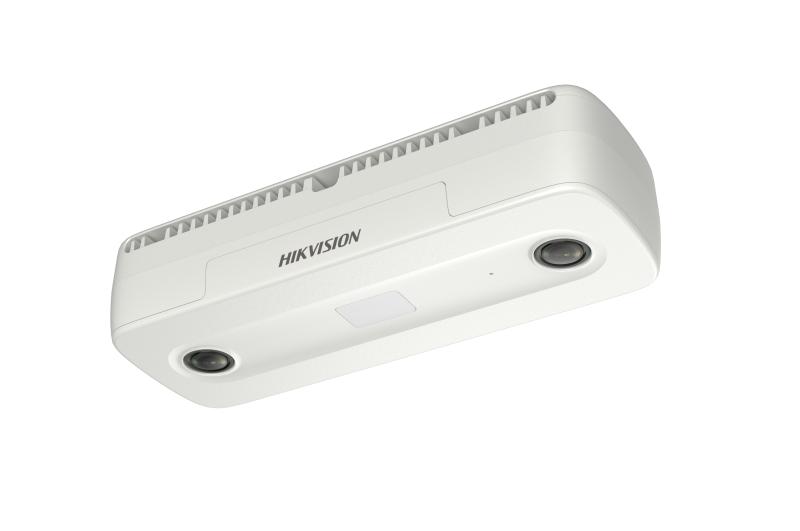

Caméra de comptage dual-lens 2MP — Hikvision DS-2CD6825G0/C-I(S)(EOL). Désignation constructeur : Dual-Lens People Counting Network Camera. Caractéristiques relevées sur la fiche officielle : capteur : 1/2.7ʺ Progressive Scan CMOS ; résolution : 1920 × 1080 ; objectif : Fixed focal lens, 2 mm ; focale : 2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112° ; portée d'éclairage : jusqu'à 6 m IR range ; compression : Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG ; audio : -S: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound. Matériel constructeur neuf, garanti. Prix sur demande : nos conseillers vous répondent sur WhatsApp.
| Référence | DS-2CD6825G0/C-I |
| Marque | HIKVISION |
| Catégorie | Caméras |
| Disponibilité | Sur commande |
Les enregistreurs sont livrés sans disque. Un disque spécialisé surveillance supporte l'écriture continue 24/7.
Sans onduleur, une coupure de courant interrompt l'enregistrement et peut endommager le disque dur.
| Aperture | F2.25 |
| Lens Type | Fixed focal lens, 2 mm |
| Lens Mount | M12 |
| Focal Length & FOV | 2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112° |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHz/48kHz |
| Environment Noise Filtering | Yes |
| Linkage | Upload to FTP/NAS, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Image Settings | Saturation, brightness, contrast, sharpness are adjustable by client software or web browser |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by alarm input (-S) |
| Image Enhancement | HLC, BLC, 3D DNR, defog |
| Wide Dynamic Range (WDR) | Digital WDR |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480) |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG |
| Region of Interest (ROI) | 4 fixed regions for main stream and sub-stream |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Day & Night | IR Cut Filter |
| Image Sensor | 1/2.7ʺ Progressive Scan CMOS |
| Shutter Time | 1/25 s - 1/100,000 s |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON) |
| Power | 12 VDC±20%, 12 VDC, 0.66 A, max. 8 W, Ø5.5mm coaxial power plug, reverse polarity protection PoE: 36 to 57 VDC, 802.3af, Class 3, 0.23 A to 0.14 A, max. 8.3 W |
| Language | 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Dimension | With -V: 168 mm × 61 mm × 41 mm (6.6" × 2.4" × 1.6" ) Without -V: 168 mm × 61 mm × 36 mm (6.6" × 2.4" × 1.4") |
| General Function | Anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter |
| Package Dimension | 235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9") |
| Storage Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| With Package Weight | Approx. 725 g (1.6 lb.) |
| Startup and Operating Conditions | -30 °C to +45 °C (-22 °F to +113 °F). Humidity 95% or less (non-condensing) |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome (5.0) |
| Client | iVMS-4200, Hik-Connect |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Web Browser | IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 |
| Simultaneous Live View | Up to 20 channels |
| EMC | IC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), KC: KN32:2015,KN35:2015, CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013), RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 |
| Safety | EN CB: IEC 60950-1, UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014, LOA: SANS IEC60950-1, BIS: IS 13252(Part 1)2010+A1:2013+A2:2015, CE: CE-LVD(EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Protection | With -V model: IP67 (IEC 60529-2013) |
| Environment | RoHS Directive 2011/65/EU+2015/863 |
| Alarm | -S: 1 input, 1 output (max. 24 VDC,1A) |
| Audio | -S: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound |
| RS-485 | -S: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Ethernet Interface | 1 RJ45 10M/100M Ethernet port -IVSM, -IVM/ND: M12 aviation plug, 4-core 10M/100M Ethernet port |
| Built-in Microphone | Yes |
| IR Wavelength | 850 nm |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 6 m IR range |
| People Counting | Counts people entering and exiting separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height |
Compatible avec les principales gammes HIKVISION et les standards du marché. Pour vérifier la compatibilité avec votre installation, contactez nos experts — réponse en moins de 2 minutes sur WhatsApp.
